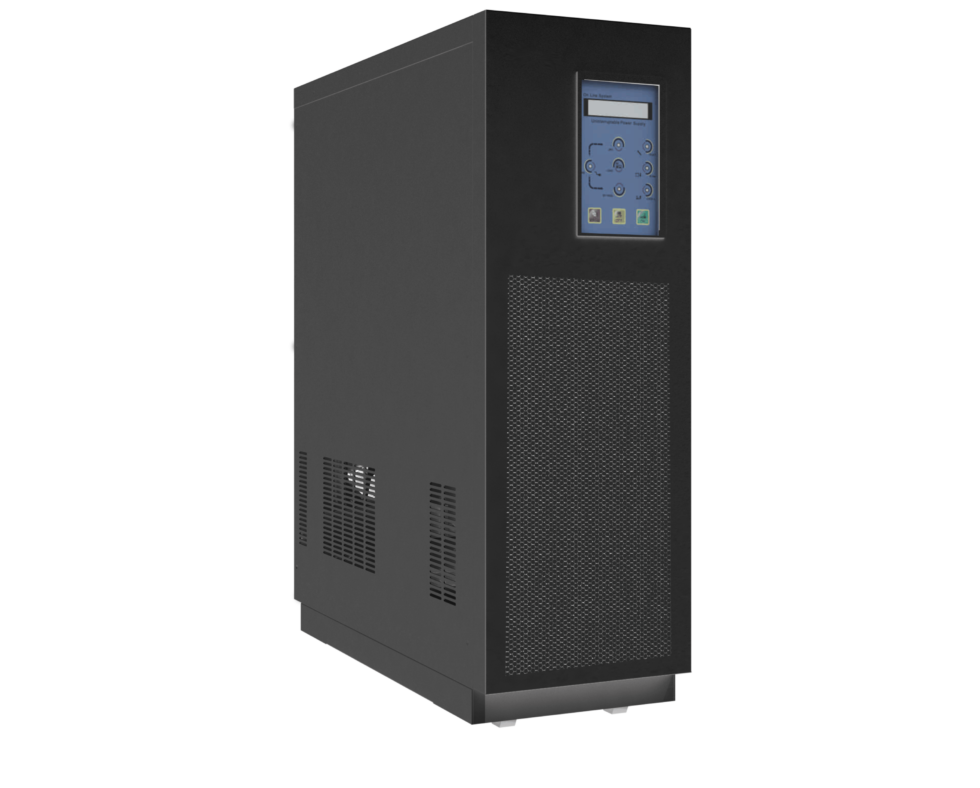

Jupiter 3/1 20KVA
Share :
This online double conversion UPS features DSP technology for high reliability and a true galvanic isolation transformer design. It is a transformer-based Level 9 compliant UPS with high short-circuit and overload capabilities.
The UPS includes intelligent battery management to help prolong battery lifecycle and independent ventilation for durable operation in harsh environments. It is suitable for all types of loads and features a built-in maintenance bypass switch.
The system supports parallel operation of up to 4 units, with optional SNMP available for network management. Standard and long-run options are also available.
Features:
Online double conversion
DSP technology
True galvanic isolation transformer design
Intelligent battery management
Independent ventilation
Suitable for all types of loads
Transformer-based Level 9 compliant UPS
High short-circuit and overload capabilities
Built-in maintenance bypass switch
Parallel operation up to 4 units
Optional SNMP
Standard and long-run options available
12-month warranty (extension options available)
General
- Capacity:20KVA / 16kW
Input
- Nominal Voltage:400VAC
- Operating Voltage Range:380/400Vac (±20%) | (3Ph+N+PE)
- Operating Frequency Range:50Hz (± 0.5%)
- Power Factor:≥0.8
Output
- Voltage:230V ±1%
- Frequency:50Hz (± 0.5% )
- Crest Factor:3:1 (max)
- Efficiency - Battery Mode:88%
- Harmonic Distortion (THDv):≤2% (Linear load)
Battery
- Voltage.:192Vdc
- Type:Lead Acid Batteries
System Features
- Transfer time:0 ms (Line mode → Battery mode)
- Efficiency - AC Mode:100 percnt;
- Overload:110% ≤Load≤150% /1min; ＞150% /200ms to Bypass
- Communication InterfaceOperating Temp:RS232 | RS485 | EPO | Dry contact | SNMP (Optional)
Environment
- Operating Temp:0°C ∼ 40°C
- Storage Temp:-25 ∼ -55°C
- Humidity range:0 ∼95% (non-condensing)
- Altitude:<1500m
- Noise level:<65dB
Physical
- Dimension WxDxH (mm):305 x 585 x 864
- Net Weight (kg):145
Standards
- Safety:IEC/EN 62040-1; IEC 62477-1
- EMC:IEC/EN 62040-2 (IEC 61000-4-2 | IEC 61000-4-3 | IEC 61000-4-4 | IEC 61000-4-5 | IEC 61000-4-6 | IEC 61000-4-8 | IEC 61000-4-11 | IEC 61000-2-2)
