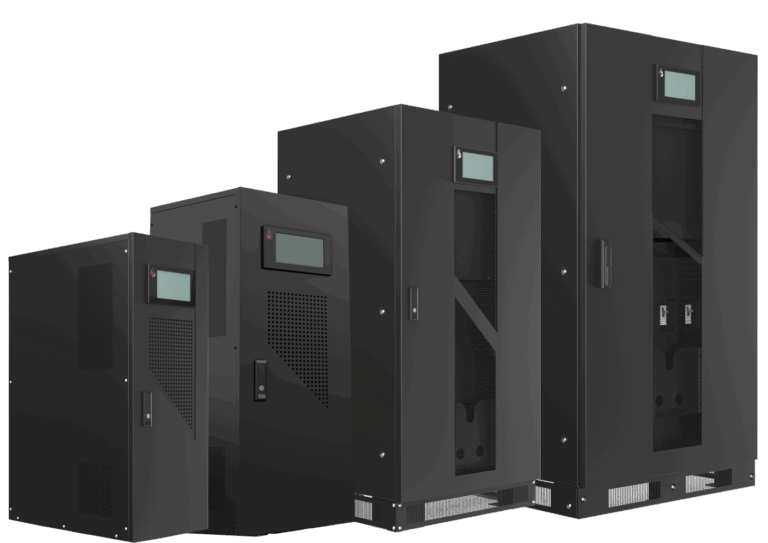

Jupiter 3 Phrase ET 120KVA
Share :
This three-phase online double conversion UPS features DSP technology and a true galvanic isolation transformer design for high reliability. It is a transformer-based Level 9 compliant UPS with high short-circuit and overload capabilities.
Designed for all types of loads, the UPS includes intelligent battery management to prolong battery lifecycle and independent ventilation for durable operation in harsh environments. A built-in maintenance bypass switch is included as standard.
The system supports parallel operation of up to 6 units (20KVA–200KVA) and is available in standard and long-run configurations. Optional SNMP is also available.
Features:
Three-phase online double conversion
DSP technology
True galvanic isolation transformer design
Intelligent battery management
Independent ventilation
Suitable for all types of loads
Transformer-based Level 9 compliant UPS
High short-circuit and overload capabilities
Built-in maintenance bypass switch
Parallel operation up to 6 units (20KVA–200KVA)
Optional SNMP
Standard and long-run options available
12-month warranty (extension options available)
General
- Capacity:120KVA / 108KW
Input
- Operating Voltage Range:380/400/415VAC (-25% / +20%) | (3Ph+N+PE)
- Operating Frequency Range:50/60Hz (± 5Hz)
- Power Factor:≥ 0.9
Output
- Voltage:380/400/415VAC (± 1%) | (3Ph+N+PE)
- Frequency:50Hz (± 0.5%)
- Harmonic Distortion (THD):≤ 1% (Linear load)
- Crest Factor:3:1 (Max)
- Efficiency:≥92%
Bypass
- Voltage.:380/400/415VAC (3Ph+N+PE)
- Freq:50/60Hz
- Voltage Protection Range:Upper limit: +20% (+10%;+15%; +20% adjustable) Lower limit: -40% (-10%;-20%; -30%; -40% adjustable)
- Frequency Protection Range:+10% ( 2.5%. 5% . 10%. 20% adjustable)
Battery
- Volt.:360VDC (360-384)
System Features
- Transfer Time:0 ms (Line mode to Battery mode)
- Overload:Load ≤ 110%/60min; ≤ 125%/10mins; ≤ 150%/1min to Bypass
- LED Display:Input | Inverter | Bypass | Battery | Output | Status
- LCD Display:I/O voltage | frequency | power | power factor | battery voltage | current | battery status | load percentage | UPS status | history record
- Communication Interface:RS232 | RS485 | EPO | Dry contact (Optional) | SNMP card (Optional)
- Optional:SNMP adapter | Dry Contact
Environment
- Operating Temperature:0°C ∼ 40°C
- Storage Temperature:-25 ∼ -55°C
- Humidity Range:0 ∼95% (non-condensing)
- Altitude:<1500m
- Noise Level:<68dB
Physical
- Dimension WxDxH (mm):890x790x1600
- Net Weight (kg):693
- Shipping Weight (kg):738
Standards
- Safety:IEC/EN 62040-1; IEC 62477-1
- EMC:IEC/EN 62040-2 (IEC 61000-4-2 | IEC 61000-4-3 | IEC 61000-4-4 | IEC 61000-4-5 | IEC 61000-4-6 | IEC 61000-4-8 | IEC 61000-4-11 | IEC 61000-2-2)
- Safety.:IEC/EN 62040-3
