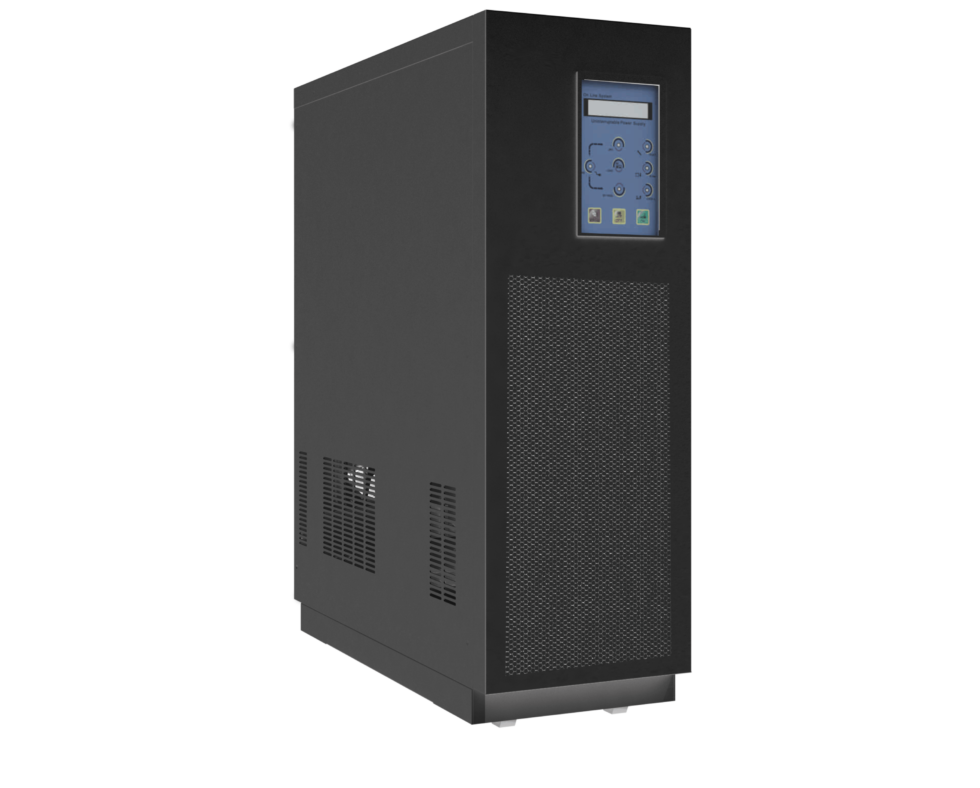

Jupiter Single Phase 20KVA
Share :
This single-phase online double conversion UPS features DSP technology for high reliability and a true galvanic isolation transformer design. It is a transformer-based Level 9 compliant UPS with high short-circuit and overload capabilities.
The UPS includes intelligent battery management to help prolong battery lifecycle and independent ventilation for durable operation in harsh environments. It is suitable for all types of loads and includes a built-in maintenance bypass switch.
SNMP is available as an optional feature, with both standard and long-run options available to suit different installation requirements.
Features:
Single-phase online double conversion
DSP technology
True galvanic isolation transformer design
Intelligent battery management
Independent ventilation
Suitable for all types of loads
Transformer-based Level 9 compliant UPS
High short-circuit and overload capabilities
Built-in maintenance bypass switch
Optional SNMP
Standard and long-run options available
12-month warranty (extension options available)
General
- Capacity:20KVA / 16kW
Input
- Nominal Voltage:220/230VAC
- Operating Voltage Range:165 ∼ 275VAC
- Operating Frequency Range:50/60Hz ( ±5%%)
- Power Factor:0.8
Output
- Voltage:220VAC (± 0.5%) / 230VAC (± 0.5%)
- Frequency:50/60Hz ( ±5%)
- Crest Factor:3:1 (max)
- Efficiency:85%
- Harmonic Distortion (THDv):&le2% (linear load)
Battery
- Voltage:192VDC
System Features
- Transfer time:0 ms (line mode → Battery mode)
- Overload:110% ≤Load≤150% /1min; >150% /200ms to Bypass
- Communication Interface:RS232 | RS485 | EPO | Dry contact | SNMP (Optional)
Environment
- Operating Temp:0°C ∼ 40°C
- Storage Temp:-25 ∼ 55°C
- Humidity range:0 ∼95% (non-condensing)
- Altitude:<1500m
- Noise level:<65dB
Physical
- Dimension WxDxH (mm):305 x 585 x 864
- Net Weight (kg):145
- Shipping Weight (kg):155
Standards
- Safety:IEC/EN 62040-1; IEC 62477-1
- EMC:IEC/EN 62040-2 (IEC 61000-4-2 | IEC 61000-4-3 | IEC 61000-4-4 | IEC 61000-4-5 | IEC 61000-4-6 | IEC 61000-4-8 | IEC 61000-4-11 | IEC 61000-2-2)
- Performance:IEC/EN 62040-3
