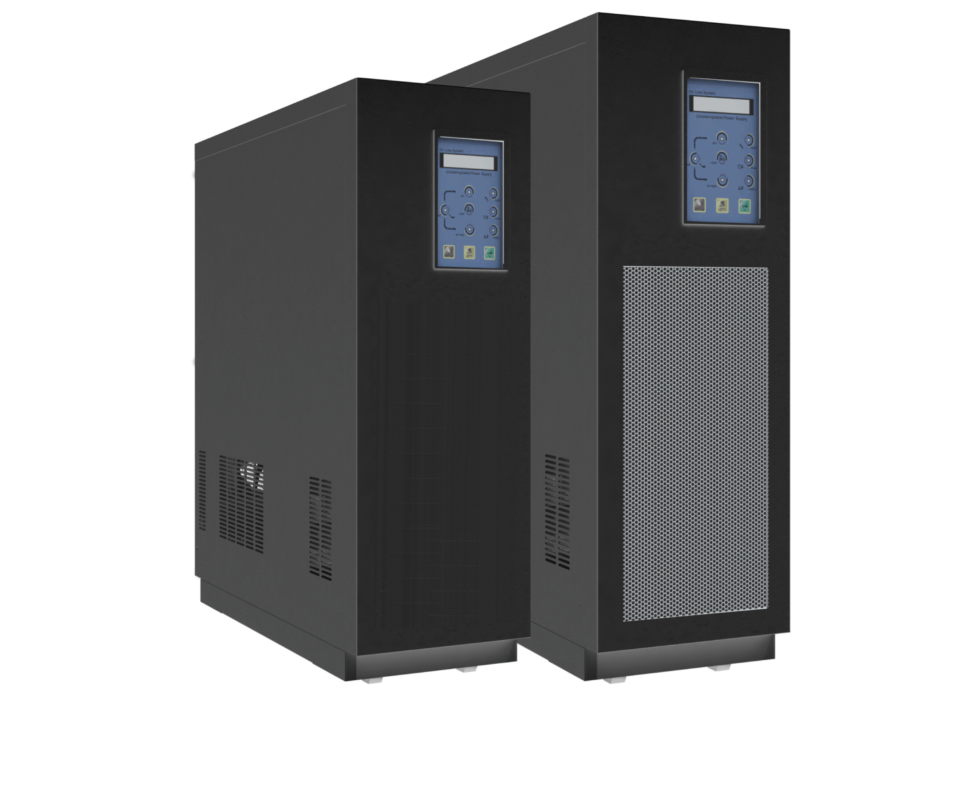

Jupiter Single Phase 6KVA
Share :
The single-phase online double conversion UPS combines DSP technology with a true galvanic isolation transformer design to deliver high reliability. As a transformer-based Level 9 compliant UPS, it offers high short-circuit and overload capabilities.
Intelligent battery management helps prolong battery lifecycle, while independent ventilation enhances durable operation in harsh environments. The UPS is suitable for all types of loads and includes a built-in maintenance bypass switch for added convenience.
Optional SNMP is available, and the UPS is offered in both standard and long-run configurations.
Features:
Single-phase online double conversion
DSP technology
True galvanic isolation transformer design
Intelligent battery management
Independent ventilation
Suitable for all types of loads
Transformer-based Level 9 compliant UPS
High short-circuit and overload capabilities
Built-in maintenance bypass switch
Optional SNMP
Standard and long-run options available
12-month warranty (extension options available)
General
- Capacity:6KVA / 4.8KW
Input
- Nominal Voltage:220/230VAC
- Operating Voltage Range:165 ∼ 275VAC
- Operating Frequency Range:50/60Hz ( ±5% )
- Power Factor:>0.8
Output
- Voltage:220Vac ( ±0.5%) / 230VAC ( ±0.5%)
- Frequency:50/60Hz ( ±0.5%)
- Crest Factor:3:1 (max)
- Efficiency:>85%
- Harmonic Distortion (THDv):≤ 1.5% with linear load
Battery
- Voltage:192Vdc
- Type:Lead Acid Batteries
System Features
- Transfer time:0 ms (online mode)
- Efficiency - AC Mode:88%
- Overload:> 125% : 1min | > 150% : 200 ms
- Communication Interface:RS232 | SNMP (optional) | Dry contact (optional)
Environment
- Operating Temp:0°C ∼40°C
- Storage Temp:-25°C ∼55°C
- Humidity range:0 ∼95% (non-condensing)
- Altitude:<1500m
- Noise level:<55dB
Physical
- Dimension WxDxH (mm):230 x 580 x 720
- Net Weight (kg):57
Standards
- Safety:IEC/EN 62040-1; IEC/EN 60950-1
- EMC:IEC/EN62040-2 | IEC61000-4-2 | IEC61000-4-3 | IEC61000-4-4 | IEC61000-4-5 | IEC61000-4-6 | IEC61000-4-8
