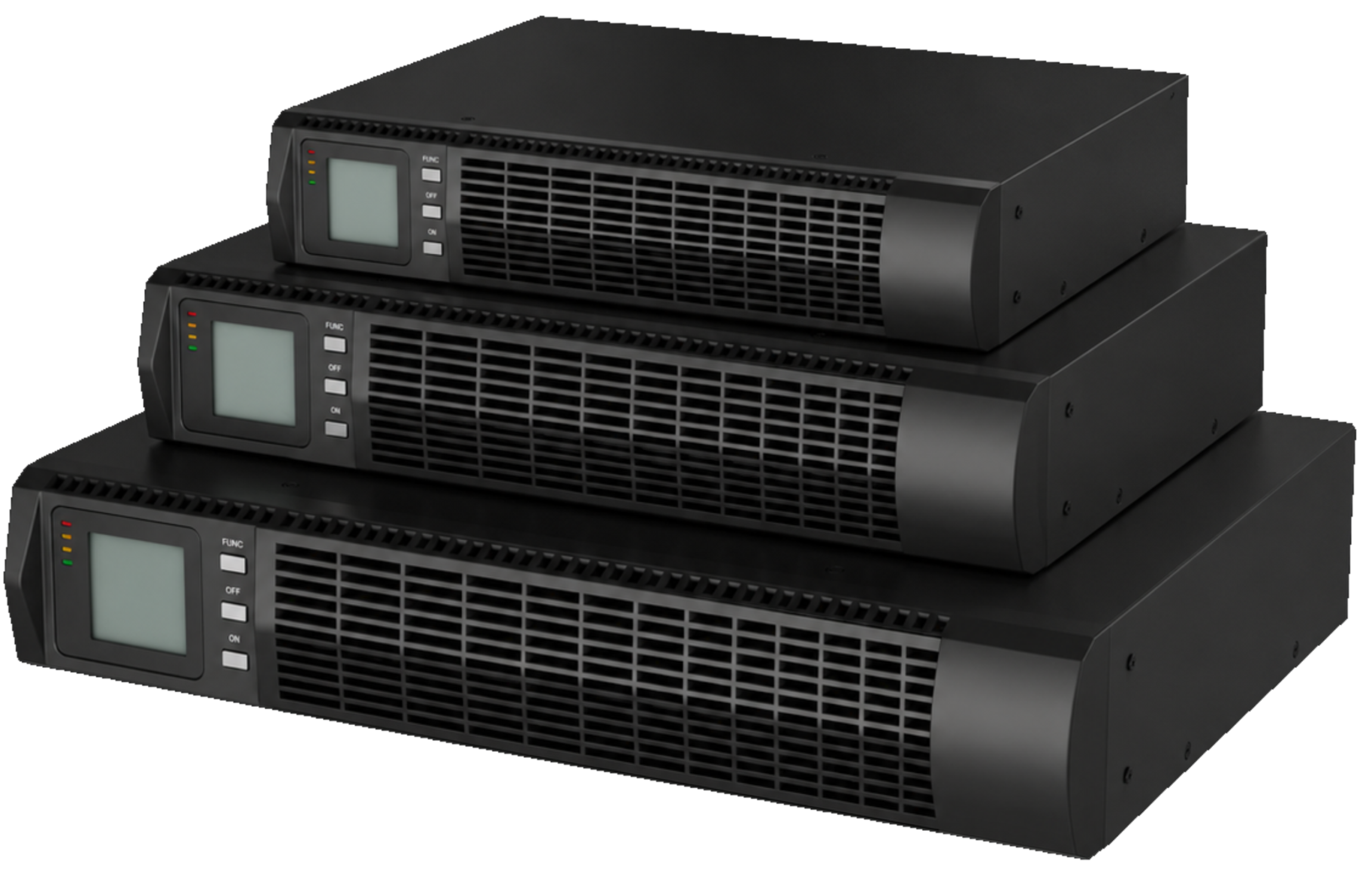

Mercury Rackmount 1000VA
Share :
This high frequency online UPS features double conversion technology with full digital control in a compact design that offers a smaller footprint. It operates across wide input voltage and frequency windows and delivers a 0.9 power factor.
The UPS includes self-testing on startup, cold start, and auto restart functions for added functionality. Communication options include RS232, USB, and EPO interfaces, with SNMP available as an optional feature.
Intelligent fan speed regulation and multiple built-in protection functions help support reliable operation, including protection against short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage, and fan fault alarms.
Features:
High frequency online double conversion
Full digital control
Compact, smaller footprint design
Wide input voltage and frequency windows
0.9 power factor
Self-testing on UPS startup
RS232 / USB / EPO communication interfaces
Optional SNMP support
Cold start and auto restart
Intelligent fan speed regulation
Short-circuit, overload, overheat, battery, output low voltage, and fan fault protection
Suitable for electronic, non-inductive loads
12-month warranty
General
- Phase:Single Phase
- Capacity:1000VA / 900W
Input
- Voltage:230VAC / 40Hz - 70Hz
- Voltage Range:160 - 280VAC at 100% load
- Frequency:0.99 @ 100% (Normal Input Voltage)
Output
- Output Voltage:230VAC
- Voltage Regulation:+- 1%
- Frequency Range (Battery Mode):50Hz +- 0.25HZ
- Current Crest Ratio:3:1
- Harmonic Distortion:3% THD (linear load) - 5% THD (non-linear load)
- Transfer Time - AC mode to battery mode:Zero
- Transfer Time - Inverter to Bypass:4ms (typical)
- Waveform (Battery Mode):Pure Sinewave
Efficiency
- AC Mode:88%
- Battery Mode:85%
Battery
- Type & Number:12V 7AH x 2
- Typical Recharge Time:10 hours to 90%
- Charging Current:1.0A
- Type & No.:27.4VDC +-1%
Alarm
- Battery Mode:Sounds every 10 seconds
- Low Battery:Sounds every second
- Overload:Sounds twice every second
- Fault:Continuous sound
Physical
- Dimension WxDxH (mm):440 x 325 x 86.5 (2U)
- Net Weight (kg’s):12
Environment
- Humidity:20-90% RH @ 0-55 Celcius (non-condensing)
- Noise Level:Less than 50dB @ 1 meter
Standards
- Smart RS-232 / USB:Support Windows @ 2000/2003/XP/Vista/2008/Windows 7/8/10/ Linux and MAC
- Optional SNMP:Power Management System from SNMP manager and web browser
