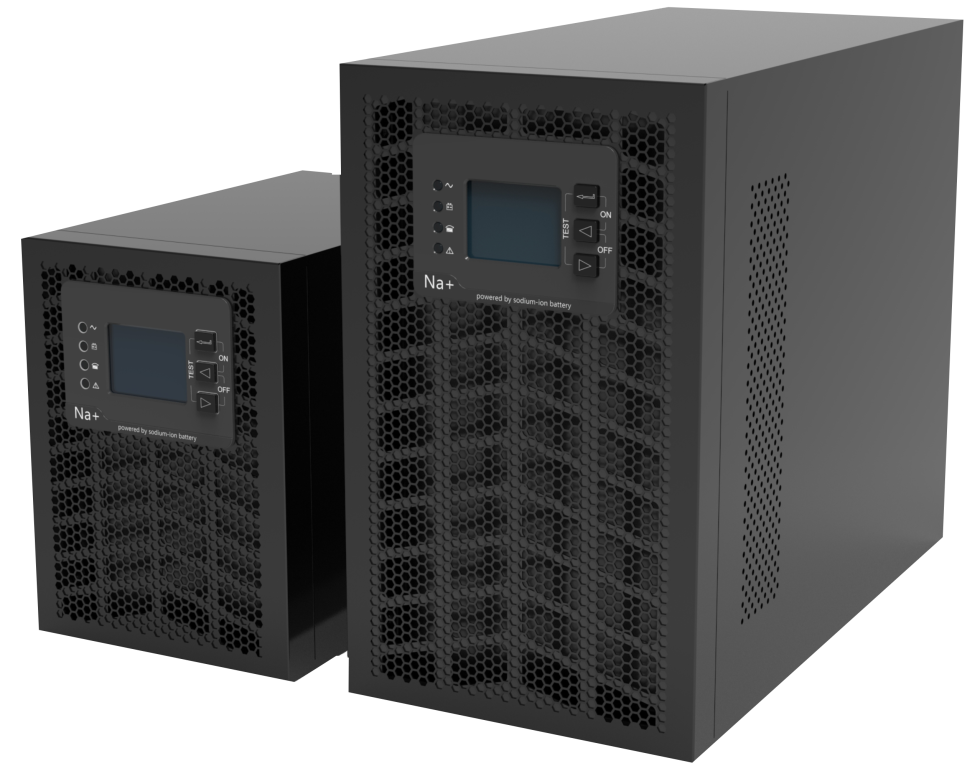

Mercury SI 3000VA
True online double conversion UPS with an output power factor of 1.0, powered by sodium-ion (NA+) batteries. Features pure sine wave output, super-fast charging, high discharge performance, and a long-life design.
Non-returnable
R11,146.80
Share :
Product Details
This true online double conversion UPS delivers pure sine wave output with an output power factor of 1.0. Powered by sodium-ion (NA+) batteries, it combines robust performance with efficient operation.
The UPS features super-fast charging with a 1C recharge rate and supports a greater than 3C high discharge rate. Its long-life design, strong thermal tolerance, and exceptional low-temperature performance make it a durable and efficient power solution.
Features:
True online double conversion
Output power factor 1.0
Sodium-ion (NA+) battery powered
Super-fast charging
Pure sine wave output
1C recharge rate
Greater than 3C high discharge rate
Long-life design
Strong thermal tolerance
Exceptional low-temperature performance
Robust and efficient
Specifications
General
- Capacity:3kVA / 3kW
Input
- Nominal Voltage:208/220/230/240VAC
- Voltage Range:100-300VAC
- Frequency:40Hz - 70Hz
- Power Factor:>0.99
- THDi:≤3% (linear load); ≤5% (non-linear load)
Output
- Nominal Voltage:208/220/230/240VAC
- Voltage Regulation:±1%
- Frequency:50/60Hz±0.1%
- Crest Ratio:3:1
- THDu:≤2% (linear load); ≤5%(non-linear load)
- Transfer Time:Line mode to battery mode -0ms inverter to bypass -4ms (typical)
- Power Factor:1.0
- Waveform:Pure Sine Wave
- Overload Time - Line Mode:Max 30min@102%-110% load Max 10 min@110-130% load Max 30s@130%-150% load 200ms@＞150% load
- Overload Time - Battery Mode:1min@102%-110% load 10s@110-130% load 3s@130%-150% load 200ms@＞150% load
Efficiency
- Line Mode:92%
- Battery Mode:91.50% (96VDC)
- ECO Mode:98%
Battery (Sodium-ion)
- Energy:96V / 460.8Wh
- Run Time (100% Load):4min
- Run Time (50% Load):13min
- Charging Time:1H to 100%
Management
- Intelligent Port:RS232 / USB port - Upsilon 2000 Standard / SNMP card optional
Environment
- Operation Temperature:0-40℃
- Storage Temperature:-15~60℃(Battery:0~40℃)
- Relative Humidity:0-95%(non-condensing)
- Noise:< 50dB@1 meter
- Altitude:Up to1000m without derating
Standard and Cerification
- Standard and Approvals:EN/IEC 61000 - EN/IEC 62040
Physical
- Case Size (WxDxH) (mm):190x390x320
- Weight (KG):15.2(sodium)
- Carton Size (WxDxH) (mm):285x500x430
Warranty
- Battery:2 Years
- UPS:1 Year
