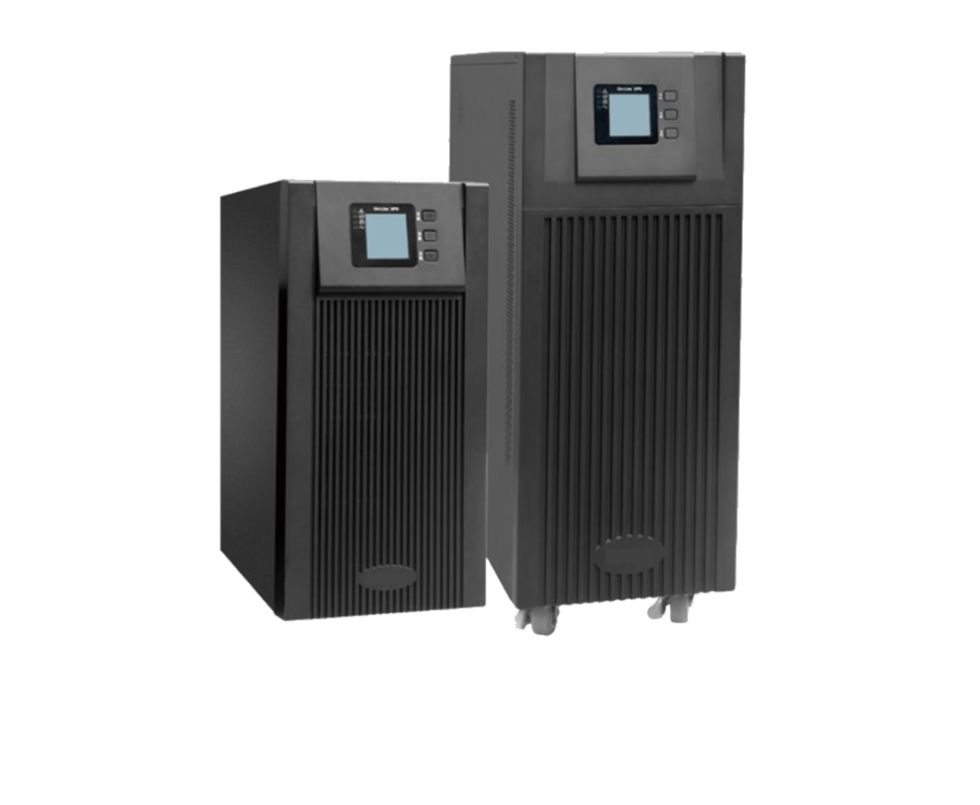

Saturn 3/1 10KVA
Share :
This high frequency online double conversion UPS features full digital control and a compact design for a smaller footprint. It operates across wide input voltage and frequency windows with a 0.9 power factor.
The UPS includes an adjustable charger and supports internal or external battery options. It also features self-testing on startup, cold start, auto restart, and a maintenance bypass switch.
Communication interfaces include RS232, USB, and EPO, with SNMP available as an optional feature. Intelligent fan speed regulation and multiple protection functions include short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage, and fan fault alarm.
Features:
High frequency online double conversion
Full digital control
Compact design with a smaller footprint
Wide input voltage and frequency windows
0.9 power factor
Adjustable charger
Internal or external battery options
Self-testing on UPS startup
RS232 / USB / EPO communication interfaces
Optional SNMP support
Cold start and auto restart
Maintenance bypass switch
Intelligent fan speed regulation
Multiple protection functions
Suitable for electronic, non-inductive loads
12-month warranty
General
- Capacity:10KVA / 9kW
Input
- Voltage:80 / 400 / 415VAC (3Ph + N + PE) | 220 / 230 / 240VAC (L+N+PE)
- Voltage Range:208 ∼ 478VAC; 120 ∼ 276VAC
- Frequency Range:40 ∼ 70Hz (50/60Hz Auto-Sensing)
- Bypass Voltage Range:Max. voltage: 220V: +25% (Optional + 10% + 15% + 20%) | 230V: +20% (Optional 10% + 15%) | 240V: +15% (Optional +10%) Min. voltageL -45% (Optional -20% to -30%)
- Frequency Protection Range:50/60Hz ±10%
Output
- Output Voltage:220 / 230 / 240VAC (L+N+PE)
- Voltage Regulation:1%
- Power Factor:0.9
- Output Frequency:See below
- Line mode:±1% / ±2% ±4% / ±5% / ±10% of the rated frequency (Optional)
- Battery mode:50 / 60 ( ±0.1%(Hz)
- Transfer Time:See below
- AC mode to battery mode:0ms
- Inverter to Bypass:0ms
- Waveform (Battery Mode):Pure Sinewave
- Crest Factor:3:1
- Harmonic Distortion:≤2% Linear load | ≤5% Non linear load
- Overload:See below
- AC mode:Loads ≤ 110%: last 60min turn to bypass; ≤ 125%: last 10min turn to bypass; ≤ 150%: last 1 min turn to bypass; 150 turn to bypass mode immediately
- Battery mode (Overload):Loads ≤110%: last 10min; ≤125%: last 1min; ≤125% shut down UPS immediately
- Bypass mode:Breaker 2 x 32A
- Efficiency:up to 93.5%
Battery
- Voltage Std Unit:20pcs 9Ah
- Voltage Long Run Unit:±96Vdc∼ ±120Vdc (16∼ 20pcs; 16pcs default; standard unit and 20pcs no power derating: 20pcs output power factor 0.9; 18pcs output power factor 0.8; 16pcs output power factor 0.7)
- Charging Current:14A Max. | Charging current can be set according to battery capacity
Physical
- Dimension WxDxH (mm):250 x 900 x 870
- Net Weight (kg’s):61
Environment
- Operating Temperature:0°C - 40°C
- Storage Temperature:<1500m; derating required when >1500m
- Humidity Range:0 ∼ 95% (Non condensing)
- Altitide:-25°C to 55°C
- Noise Level:<55dB at 1 meter
Standards
- Safety:IEC/EN62040-1 | IEC/EN62477-1
- EMC:IEC/EN62040-2 | IEC61000-4-2 | IEC61000-4-3 | IEC61000-4-4 | IEC61000-4-5 | IEC61000-4-6 | IEC61000-4-8
