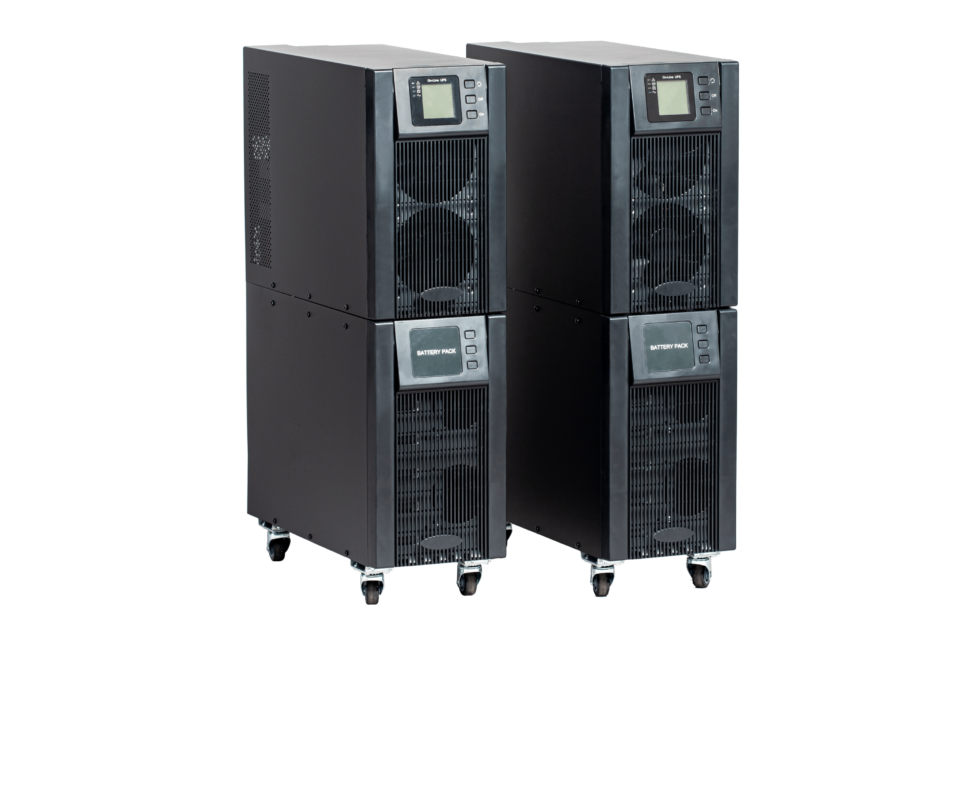

Saturn Pro 6KVA
Share :
This high frequency online double conversion UPS features full digital control and a compact design for a smaller footprint. It operates across wide input voltage and frequency windows with a 0.9 power factor.
The UPS includes an adjustable charger up to 10A and supports internal or external battery options. It also features self-testing on startup, cold start, auto restart, and a maintenance bypass switch.
Communication interfaces include RS232, USB, and EPO, with SNMP available as an optional feature. Intelligent fan speed regulation and multiple protection functions include short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage, and fan fault alarm.
Features:
High frequency online double conversion
Full digital control
Compact design with a smaller footprint
Wide input voltage and frequency windows
0.9 power factor
Adjustable charger up to 10A
Internal or external battery options
Self-testing on UPS startup
RS232 / USB / EPO communication interfaces
Optional SNMP support
Cold start and auto restart
Maintenance bypass switch
Intelligent fan speed regulation
Multiple protection functions
Suitable for electronic, non-inductive loads
12-month warranty
General
- Capacity:6KVA / 5400W 10KVA / 9000W
Input
- Voltage:230VAC
- Voltage Range:180 - 270VAC
- Frequency:50Hz - 60Hz Auto sensing
- Power Factor:>0.99
- Frequency Range:Max. voltage: 230 - 264VAC: Min voltage: 176 - 220VAC
Output
- Output Voltage:230VAC
- Voltage Regulation:±1%
- Frequency Range (Battery Mode:±10% of the rated frequency | (50/60 ±0.1%) Hz
- Current Crest Ratio:3:1
- Harmonic Distortion:<2% THD (linear load)
- Transfer:See below
- AC mode to battery mode:Zero
- Inverter to Bypass:5ms (typical)
- Waveform (Battery Mode):Pure Sinewave
- Transfer Time:See below
- Line mode:Load < 105% long time running: < 125% last 10min; <130% last 30s; 130% turn to bypass mode immediately
- Bypass mode:40A (Breaker)
- Efficiency:93.5%
Battery
- Battery Voltage:192VDC
- Typical Recharge Time:10 hours (to 90% of full capacity)
- Capacity (Std unit):12V7a/h or 12V9a/h
- Charging Current:1A (std unit); Long run unit max. current 10A (charge current can be set according to battery capacity)
Alarm
- Battery Mode:Sounds every 10 seconds
- Low Battery:Sounds every second
- Overload:Sounds twice every second
- Fault:Continuous sound
Physical
- Dimension WxDxH (mm):200 x 490 x 720
- Net Weight (kg’s):30kg
Environment
- Operating Temperature:0°C - 40°C
- Storage Temperature:-25°C to -55°C
- Humidity Range:0 - 95%RH @ 0 - 40°C (non condensing)
- Altitide:<1500m
- Noise:<<55dB
Standards
- Safety:IEC/EN62040-1 | IEC/EN62477-1
- EMC:IEC/EN62040-2 | IEC61000-4-2 | IEC61000-4-3 | IEC61000-4-4 | IEC61000-4-5 | IEC61000-4-6 | IEC61000-4-8
