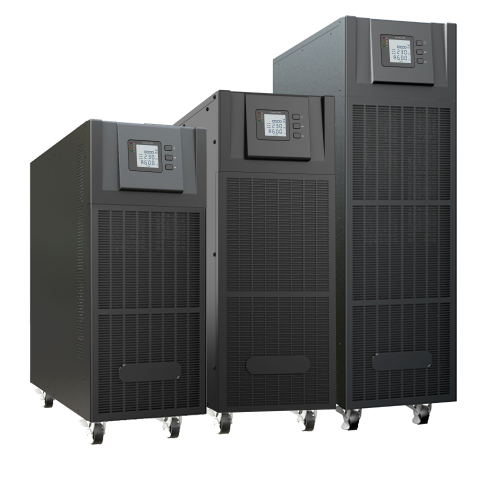

Saturn Three Phase 20KVA
Share :
This high frequency online double conversion UPS features full digital control and a compact design for a smaller footprint. It operates across wide input voltage and frequency windows with a 0.9 power factor.
The UPS includes an adjustable charger and supports internal or external battery options. It also features self-testing on UPS startup, cold start, auto restart, and a maintenance bypass switch.
Communication interfaces include RS232, USB, and EPO, with SNMP available as an optional feature. Intelligent fan speed regulation and multiple protection functions include short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage, and fan fault alarm.
Features:
High frequency online double conversion
Full digital control
Compact design with a smaller footprint
Wide input voltage and frequency windows
0.9 power factor
Adjustable charger
Internal or external battery options
Self-testing on UPS startup
RS232 / USB / EPO communication interfaces
Optional SNMP support
Cold start and auto restart
Maintenance bypass switch
Intelligent fan speed regulation
Multiple protection functions
Suitable for electronic, non-inductive loads
12-month warranty
General
- Capacity:20KVA / 18kW
Input
- Voltage:380 / 400 / 415VAC (3Ph + N + PE)
- Voltage Range:305 - 478VAC (Full load); 208 - 478VAC (50% load)
- Frequency Range:40 - 70Hz (50/60Hz Auto-Sensing)
- Power Factor:≤0.99
- Bypass Voltage Range:Max. voltage: 220V: +25% (Opt + 10% + 15% + 20%) | 230V: +20% (Opt 10% + 15%) | 240V: +15% (Opt +10%) Min. voltageL -45% (Opt -20% -30%)
- Frequency Protection:50/60Hz 10%
- ECO Range:Same as bypass
- Harmonic Distortion:≤3% Linear load
Output
- Output Voltage:380 / 400 / 415VAC (3Pn+N+PE)
- Voltage Regulation:±1%
- Power Factor:0.9
- Output Frequency:See Below
- Line mode:±1% / ±2% ±4% / ±5% / 1±0% of the rated frequency (Optional)
- Bypass mode:50 / 60 ( ±0.1%(Hz)
- AC mode to battery mode:0ms
- Transfer Time:See Below
- Inverter to Bypass:0ms
- Waveform (Battery Mode):Pure Sinewave
- Pwr Factor:3:1
- Harmonic Distortion:≤2± Linear load | 5± Non linear load
- Output Freq:See Below
- AC mode:≤110% last 60min; ≤125% | last 10min; ≤150& | last 1min; < 150% turn to bypass immediately
- Battery mode:≤110% last 60min; ≤125% | last 10min; ≤150& | last 1min; < 150% turn to bypass immediately
- Efficiency:up to 93.5%
Battery
- Voltage Std Unit:240VDC 2 x 20 x 12V9AH +N–
- Charge Current Std Unit:2.7A
- Charge Current Long Run Unit:18A Max
Physical
- Dimension WxDxH (mm):Std Unit: 250 x 900 x 868 | Long Run Unit: 250 x 580 x 655
- Net Weight (kg’s):187/40
Environment
- Operating Temperature:0°C - 40 °C
- Storage Temperature:-25°C - 55 °C
- Humidity Range:0 - 95% (Non condensing)
- Altitide:< 1500m derating required when >1500m
- Noise Level:>58dB
Standards
- Safety:IEC/EN62040-1 | IEC/EN62477-1
- EMC:IEC/EN62040-2 | IEC61000-4-2 | IEC61000-4-3 | IEC61000-4-4 | IEC61000-4-5 | IEC61000-4-6 | IEC61000-4-8
