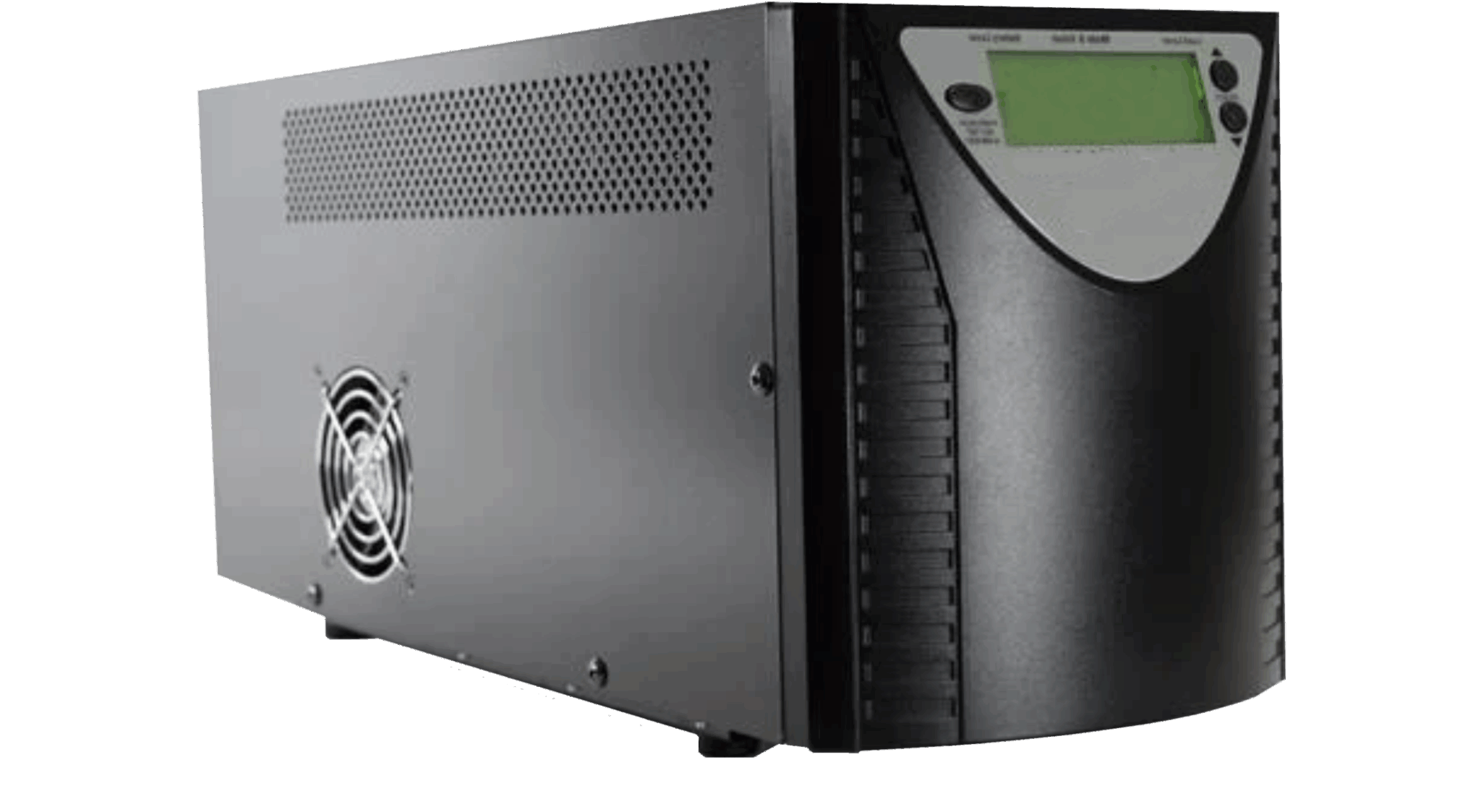

SS Pro 1000VA
Share :
This pure sine wave online UPS features a microprocessor-based design with true parallel online topology for reliable operation. It includes adjustable voltage sensitivity and smart battery management with intelligent double-stage charging control.
The UPS provides real-time auto-detection of battery state and automatic restart after low battery. It is also generator compatible and incorporates a Green Power design with an auto on/off function.
Additional features include a suitably rated charger for large battery banks, an RS-232 communication interface, optional SNMP network management, and an optional solar controller.
Features:
Pure sine wave output
Microprocessor-based design
True parallel online topology
Adjustable voltage sensitivity
Smart battery management
Intelligent double-stage charging control
Real-time battery state auto-detection
Automatic restart after low battery
Generator compatible
Green Power design with auto on/off function
Suitably rated charger for large battery banks
RS-232 communication interface
Optional SNMP network management
Optional solar controller
General
- Capacity:1000VA / 600Watts
Output
- Output Voltage:200V / 220V / 230V / 240V Selectable
- Voltage WaveformCrest Factor:Pure Sinewave
- Crest Factor:3 : 1
- Output Frequency (Synchronized to Mains):Auto Select for 50/60Hz | 47Hz 55Hz for 50Hz nominal | 56 65Hz for 60Hz nominal
- Regulation (Nominal):± 10% typical of nominal voltage
- Regulation (Battery Mode):± 3% of selected voltage (adjustable with the remote set-up software)
- Transfer Time:Blackout 3ms typical | Brownout 1ms typical | Battery mode to Normal : 1ms typical
- Over Current Protection:Over load alarm level 100% 120% | Over load shut down level 120% 190% | (Adjustable by using the remote set-up software)
Input
- Nominal Voltage:200V / 220V / 230V / 240V Selectable
- Input Frequency:47Hz 65Hz; 50/60Hz auto-sensing
- Efficiency (Normal):97%
- Noise Filtering:Full time EMI/RFI filtering
- Over Current Protection:AC Fuse：1000VA | Re-settable over current protector: 2000VA ~ 5000VA
- Efficiency (Normal Mode):AC Fuse: 1000VA | Re-settable over current protector: 2000VA 5000VA
- Voltage Range:140V 310V
- AVR Range (2 Bucks, 2 Boosts):Enhanced Buck: +28% of selected nominal voltage | Buck mode: + 10% of selected nominal voltage | Boost mode: - 10% of selected nominal voltage | Enhanced boost: - 25% of selected nominal voltage
- Surge Protection:1000VA : 220 Joules | 2000VA 5000VA : 440 Joules
Battery
- Battery Type:Lead-Acid or Lithium Ion (LiFePO4)
- Voltage:1000VA : 12Vdc : 2000VA / 3000VA : 24Vdc : 5000VA : 48Vdc
- Charging Method:Smart pulse charging with two charging modes : Quickly charging when battery is not fully charged and trickle charging when battery is 90% fully charged
- Maximum Charging Current:1000VA : 20A / 2000VA : 20A | 3000VA : 20A / 5000VA : 20A
- Average Charging Voltage For Each Battery:Quick charging mode : 14.4 | Trickle charge mode : 13.5V
- Protection:Overcurrent and overcharge protection with thermal control. Charging pauses above 45°C for 2 minutes then resumes for 2 minutes repeating until the temperature drops below 44°C
- Monitoring:Smart monitoring & warning for failed battery or open-circuit battery | Auto-detection each time when power on or every 6 days
Solar Charger (MPPT, Optional)
- Rating Voltage:12V / 24V / 48V
- DC Input Range:12V model ：12 ∼ 60Vdc | 24V model ：24 ∼ 60Vdc | 48V model ：48 ∼ 90Vdc
- Charging Method:Constant voltage and current limiting by controller
- Charging Voltage:12V model ：14.8V / 13.5Vdc | 24V model ：29.6V / 27.0Vdc | 48V model ：59.2V / 54.0Vdc
- Power Rating:12V model ：338W (13.5Vdc @ 25A) | 24V model ：675W (27.0Vdc @ 25A) | 48V model ：1000W (54.0Vdc @18.5A)
- Protection:DC input polarity protection. DC input short circuit protection (when battery is connected). DC output over current protection
Communcatione and Management
- Standard Interface Port:UPSilon2000 compatible; optional for RS232 and/or USB
- Optional Interface Part:RJ45 (Surge protection); DB9; SNMP (external type)
- Control Panel:LCD or LED Selectable
- Audible Alarm:Alarm on battery: Low battery & Battery over voltage | Alarm on abnormal operation: Over load Short-circuit & Over heat
- Green Mode Function (Auto-Shut-Off in Blackout):1% to 14% of full load (adjustable by using the remote set-up software) The default setting is OFF
- Cooling Fan Control:Auto on / off; controlled by temperature & operation mode
Environment and Safety
- Operating Temperature:Up to 1500 meters：0℃ to 40℃ (32℉ to 104℉)
- Transit / Storage Temp.:-15℃ to 55℃ (5℉ to 131℉)
- Relative Humidity:5 - 95% non condensing
- Operating Altitude:0 ∼ 3000 meters
- Quality Control System:ISO 9001
Physical
- Dimensions (D x H x W) Unit / Shipping:1000VA：38 x 21 x 18 (cm) / 48 x 33 x 30 (cm)
- Weight: Net / Gross (kg):1000VA : 12.2 /14.5 (kg)
